The Definitive Guide to BMS Software Engineering
This comprehensive overview explores the intricate world of Battery Management System software design, covering architectural fundamentals, development methodologies, and core functional implementations. Whether you're new to the field and asking what is bms or an experienced engineer seeking advanced insights, this resource provides invaluable knowledge for developing state-of-the-art BMS solutions.
BMS Software Architecture
A robust BMS Software Architecture serves as the backbone for reliable battery management, ensuring all components work harmoniously to monitor, protect, and optimize battery performance. When addressing what is bms from an architectural perspective, we examine how software components interact to provide comprehensive battery oversight.
Layered Architecture Approach
Modern BMS software typically employs a layered architecture to separate concerns and enhance maintainability:
- Hardware Abstraction Layer (HAL): Provides a consistent interface to underlying hardware components, including sensors, actuators, and communication peripherals.
- Data Acquisition Layer: Responsible for collecting, filtering, and validating raw data from battery cells and associated components.
- Control Logic Layer: Implements core algorithms for state estimation, protection, and balancing operations.
- Communication Layer: Manages data exchange with external systems via CAN, Ethernet, Bluetooth, or other protocols.
- Application Layer: Provides user-specific functionality and interfaces for configuration and monitoring.
This architectural separation allows for modular development, easier testing, and flexibility in adapting to different battery chemistries and form factors. When someone asks what is bms architecture, this layered approach represents the industry standard for reliable and maintainable systems.
Key Architectural Considerations
Effective BMS Software Architecture must address several critical factors:
- Real-time Performance: Critical operations like overcurrent protection require deterministic response times in microseconds.
- Reliability: Fault tolerance mechanisms to ensure operation despite component failures or communication errors.
- Safety: Independent monitoring paths for critical protection functions to prevent single points of failure.
- Scalability: Ability to support varying numbers of cells and configurations without major architectural changes.
- Upgradability: Support for firmware updates to introduce new features and address emerging requirements.
BMS Software Architecture Diagram
Layered structure with component interactions
Understanding this architecture is fundamental to answering what is bms from a software perspective.
Safety Architecture
Independent monitoring paths and failsafe mechanisms
Communication Flow
Defined protocols for internal and external data exchange
V-Model Based Software Development
The V-Model Based Software Development lifecycle provides a structured approach to BMS software engineering, ensuring thorough verification and validation at each stage. This methodology is particularly valuable when developing safety-critical systems like BMS, as it establishes clear relationships between requirements, design, implementation, and testing.
When explaining what is bms development, the V-model offers a comprehensive framework that aligns with functional safety standards such as ISO 26262 for automotive applications and IEC 61508 for industrial systems.
V-Model Stages in BMS Development
Requirements Specification
Defining functional and non-functional requirements based on battery characteristics, application needs, and safety standards. This includes cell monitoring accuracy, balancing capabilities, communication interfaces, and fault handling.
System Design
Translating requirements into a high-level system architecture, defining major components, their interactions, and data flows. This stage establishes the overall structure that will implement the requirements.
Detailed Design
Developing component-level designs, including algorithms for state estimation, protection logic, balancing control, and communication protocols. Each module's interfaces and behavior are precisely defined.
Implementation
Writing code according to the detailed design specifications, following coding standards, and implementing proper error handling and defensive programming techniques.
Unit Testing
Verifying individual components function correctly in isolation through white-box testing, ensuring each unit meets its design specifications.
Integration Testing
Testing interactions between components and subsystems to ensure they work together as specified, validating interfaces and data flows between modules.
System Testing
Evaluating the complete system against the original requirements, verifying overall functionality, performance, safety, and reliability in a simulated environment.
Validation & Verification
Confirming the system meets all customer needs and safety requirements through extensive testing in real-world conditions, including environmental stress testing and fault injection.
The iterative nature of the V-model allows for early detection and resolution of issues, reducing development risks and ensuring a more robust final product. For anyone asking what is bms development best practice, the V-model represents the industry standard for creating reliable, safe, and effective battery management systems.

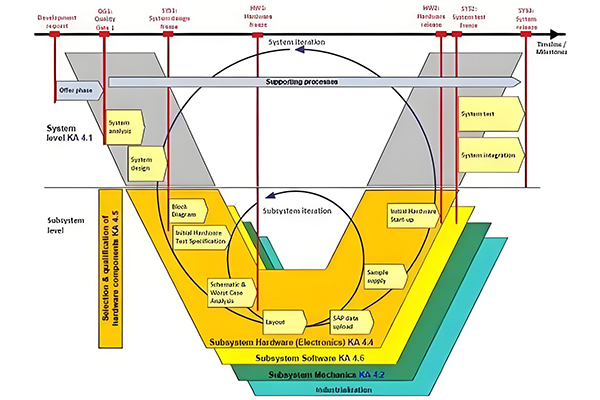

V-Model Development Process
Structured approach with verification and validation alignment
Key Benefits for BMS Development
- Clear traceability from requirements to implementation
- Early detection of design flaws through verification
- Systematic validation against safety requirements
- Compliance with functional safety standards
Compliance & Standards
ISO 26262
Functional Safety for Road Vehicles
IEC 61508
Functional Safety of Electrical/Electronic Systems
SAE J1772
Electric Vehicle Conductive Charging
UL 1973
Batteries for Stationary Applications
BMS Core Function Development
The BMS Core Function Development encompasses the critical software features that enable effective battery management. These functions represent the practical implementation of the theoretical concepts that answer what is bms in operational terms.
Cell Monitoring & Measurement
Accurate cell monitoring forms the foundation of effective battery management. This function involves:
- High-precision voltage measurement (±1mV typical accuracy)
- Temperature sensing at multiple points within the battery pack
- Current measurement for charge/discharge monitoring
- Isolation resistance monitoring for safety
Implementation Considerations: Noise filtering, offset calibration, temperature compensation, and periodic self-testing to ensure measurement integrity.
State Estimation Algorithms
Accurate state estimation is critical for optimal battery performance and longevity:
-
State of Charge (SOC) Estimation:
Calculating remaining capacity relative to nominal capacity using methods such as:
- Coulomb counting with capacity correction
- Open Circuit Voltage (OCV) lookup tables
- Kalman Filter variants (Extended Kalman Filter, Unscented Kalman Filter)
- Neural network-based approaches for complex scenarios
-
State of Health (SOH) Monitoring:
Tracking battery degradation through:
- Capacity fade monitoring
- Internal resistance measurement
- Cycle count tracking
- Aging model implementation
-
State of Function (SOF) Assessment:
Determining the maximum charge/discharge power capability under current conditions
Cell Balancing Control
Cell balancing ensures uniform charge levels across all cells in a battery pack:
- Passive Balancing: Discharging higher voltage cells through resistors during charging
- Active Balancing: Transferring energy between cells using inductors or capacitors for higher efficiency
- Adaptive balancing algorithms that optimize for speed and energy efficiency
- Balancing initiation criteria based on voltage differentials and operational state
Additional Core Functions
Critical features for complete battery management
Protection Mechanisms
Comprehensive protection functions to prevent battery damage and ensure safety:
Protection functions implement multiple safety layers with configurable thresholds and time delays appropriate for the specific battery chemistry.
Communication Interfaces
Enabling data exchange with external systems:
- CAN 2.0B / CAN FD for automotive applications
- Modbus RTU/TCP for industrial systems
- Bluetooth Low Energy (BLE) for user interfaces
- Ethernet for high-bandwidth data logging
- ISO 15118 for EV charging communication
Thermal Management Control
Optimizing battery temperature for performance and longevity:
- Heating/cooling system control algorithms
- Temperature uniformity enforcement
- Adaptive thermal setpoints based on operating mode
Data Logging & Diagnostics
Capturing critical information for analysis and troubleshooting:
- High-resolution time-series data recording
- Fault code generation and storage (DTCs)
- Event-triggered recording for critical incidents
- Health and performance trend analysis

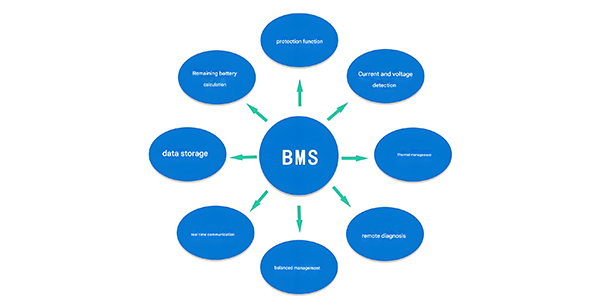

BMS Function Interaction
How core functions work together in operation
Function Integration Considerations
Successful BMS Core Function Development requires careful integration to ensure:
- Deterministic execution of time-critical functions
- Data consistency across interconnected functions
- Resource optimization for memory and processing
- Fault tolerance through function redundancy
Understanding these interactions is essential when explaining what is bms system behavior in real-world applications.
Advancing BMS Software Excellence
The development of sophisticated BMS software requires a harmonious integration of robust architecture, rigorous development processes, and innovative core functions. As battery technologies continue to evolve, so too must the software that manages them, addressing new challenges and unlocking greater performance.
Whether you're just learning what is bms or are an experienced developer, adhering to these proven practices ensures the creation of safe, reliable, and efficient battery management systems that meet the demands of today's energy applications.
