Comprehensive BMS Battery Solutions

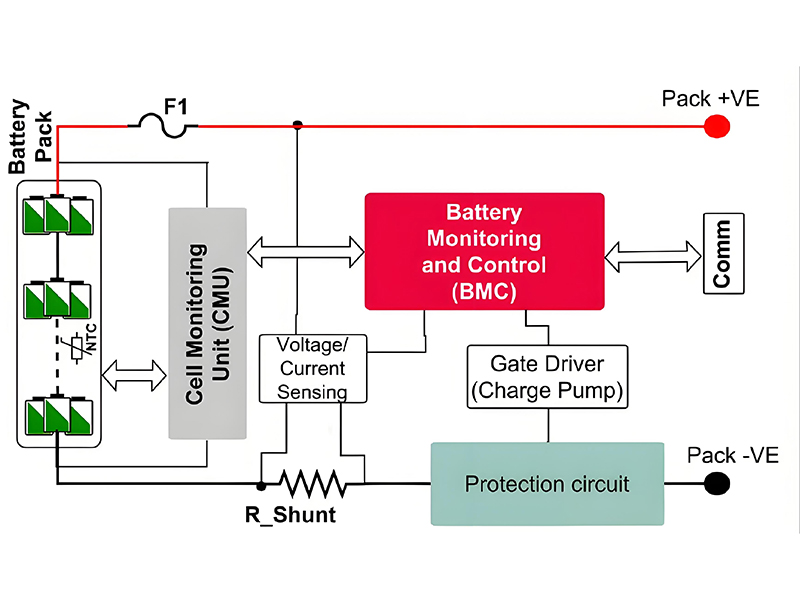

In the realm of battery management, the bms battery technology plays a crucial role in ensuring optimal performance, safety, and longevity of battery systems. As this guide focuses on the engineering aspects of these products, we'll explore 11 key functions and different topological structures of BMS systems.
Existing bms battery products can be classified into four main categories: Integrated BMS, Master-Slave BMS, Bus-Type BMS, and Wireless BMS. Each type offers unique advantages and is designed to address specific application requirements, from small-scale low-voltage systems to large-scale distributed energy storage solutions.
Understanding the differences between these bms battery systems is essential for selecting the right solution for your specific application, whether you're designing a新能源 vehicle, a renewable energy storage system, or any other battery-powered device that requires precise monitoring and management.
Integrated BMS Battery Management System
The integrated BMS represents a compact solution in the bms battery product lineup, designed for simplicity and cost-effectiveness. As illustrated in Figure 1-6, this product can simultaneously monitor a system consisting of 48 series-connected batteries, making it ideal for smaller-scale applications.
This bms battery system excels at monitoring basic battery parameters including cell voltage, temperature, current, and remaining capacity (SoC). It efficiently collects this data and transmits the corresponding information to the vehicle control unit, ensuring optimal operation of the entire battery system.
Due to its design that manages a relatively small number of individual cells, the integrated bms battery system offers a more straightforward functionality set compared to its counterparts. This simplicity translates to lower costs, making it particularly suitable for low-cost, low-voltage new energy vehicle battery management applications.
Typical applications for this bms battery solution include electric two-wheelers, small electric vehicles, and low-voltage energy storage systems where the battery configuration is relatively simple and space is at a premium. Its compact design allows for easy integration into existing systems without requiring significant modifications.
Key Advantages
- Cost-effective solution for small battery systems
- Compact design for space-constrained applications
- Simplified installation and maintenance
- Low power consumption for extended operation
Figure 1-6: Integrated BMS Product
Note: Product image provided by Dongguan Juwei Power Technology Co., Ltd.
Performance Specifications
Maximum Cells Monitored
48
Voltage Range
0-150V
Temperature Sensors
Up to 16
Communication
CAN 2.0B
Master-Slave (Star) BMS Battery System
The master-slave (star) configuration represents a more scalable approach in the bms battery product family. As shown in Figure 1-7, this product consists of one master system and two slave systems, creating a hierarchical management structure that enhances both monitoring capabilities and system expandability.
Each slave system (see Figure 1-7b) in this bms battery setup can simultaneously monitor a battery module consisting of 48 series-connected batteries. These slave units are responsible for monitoring basic physical parameters such as individual cell voltage, temperature, and current, which they then transmit to the master system for centralized processing.
The master system (see Figure 1-7a) serves as the central processing unit in this bms battery architecture, capable of managing two slave systems initially. It processes the information received from each slave unit to perform comprehensive evaluations of the entire battery system, including total voltage, maximum/minimum voltage, maximum/minimum temperature, state of charge (SoC), battery consistency, and remaining lifespan.
This bms battery system can manage up to 96 series-connected batteries in its standard configuration. However, one of its key advantages is its expandability—for different numbers of battery cells, the number of interfaces that the master system opens to slave systems can be further expanded according to the formula:
k = floor(n/48) + 1
Where floor(x) represents the floor function of x (rounding down to the nearest integer)
The master-slave bms battery system offers excellent scalability, making it suitable for medium to large battery installations. However, because each slave system needs to connect directly to the master system, it requires careful consideration of the physical placement of each component. This configuration is particularly well-suited for vehicle models where battery subsystems are relatively concentrated, such as logistics vehicles and passenger cars.
Figure 1-7: Master-Slave BMS Product
a) Master System b) Slave System
Note: Product images provided by Dongguan Juwei Power Technology Co., Ltd.
Scalability Chart
Bus-Type BMS Battery Management System
The bus-type BMS represents a sophisticated approach in the bms battery technology landscape, designed for enhanced flexibility and distributed system management. As depicted in Figure 1-8, this product configuration consists of one main system (mother system) and several sub-systems, connected through a unified communication bus architecture.
Each sub-system in this bms battery setup (see Figure 1-8b) can simultaneously monitor a battery module composed of 50 series-connected batteries. These sub-systems are responsible for monitoring essential physical parameters including individual cell voltage, temperature, and current, which they transmit to the mother system for centralized analysis and decision-making.
The mother system (see Figure 1-8a) acts as the central processing hub in this bms battery configuration. It receives and processes information from all connected sub-systems to evaluate critical battery system parameters such as total voltage, maximum/minimum voltage, maximum/minimum temperature, state of charge (SoC), cell consistency, and remaining service life. This comprehensive data is then formatted and transmitted to higher-level control systems as needed.
A key distinguishing feature of the bus-type bms battery system, compared to the master-slave configuration, is its use of a CAN bus for communication between the mother system and all sub-systems. This bus architecture creates a more flexible and robust communication framework that can accommodate more complex and geographically distributed battery system models.
The bus-type bms battery system's ability to handle greater distances between components makes it highly versatile across a wide range of applications. This configuration excels in scenarios where battery modules need to be physically separated while maintaining coordinated operation, such as in larger electric vehicles, stationary energy storage systems, and marine applications.
The modular nature of this bms battery solution also simplifies maintenance and upgrades, as individual sub-systems can be serviced or replaced without disrupting the entire system. This design philosophy contributes to improved system reliability and reduced downtime, making it a preferred choice for mission-critical applications.
Figure 1-8: Bus-Type BMS Product
a) Mother System b) Sub-Systems
Note: Product images provided by Dongguan Juwei Power Technology Co., Ltd.
System Architecture
(50 cells)
(50 cells)
(50 cells)
Wireless BMS Battery Management System
The wireless BMS represents the cutting edge of bms battery technology, leveraging modern communication protocols to eliminate traditional wiring constraints. As shown in Figure 1-9, this innovative product configuration consists of several sub-systems and a central mother system, communicating entirely through wireless technology.
Each sub-system in this wireless bms battery setup (see Figure 1-9a) is designed to monitor individual battery cells, collecting critical data such as voltage, temperature, and internal resistance. A key innovation is that these sub-systems draw their power directly from the battery cells they monitor, eliminating the need for separate power supplies and further simplifying installation.
The wireless communication capability of this bms battery system, typically utilizing WiFi technology, enables seamless data transmission from each sub-system to the mother system (see Figure 1-9b). This wireless architecture eliminates the complex wiring harnesses required by traditional BMS configurations, significantly reducing installation complexity and potential points of failure.
The mother system in this wireless bms battery configuration processes the information received from all sub-systems to evaluate overall battery system characteristics, including state of charge (SoC), state of health (SoH), cell balancing requirements, and various safety parameters. This centralized processing ensures comprehensive system oversight while maintaining the flexibility of a distributed architecture.
One of the most significant advantages of the wireless bms battery system is its simplified installation and maintenance. With no physical wiring required between components, setup is reduced to configuring the network between sub-systems and the mother system. This not only saves time during initial installation but also simplifies future maintenance and system expansions.
The elimination of wiring harnesses in this bms battery solution offers additional benefits in terms of system weight reduction and space savings—critical factors in many applications, particularly in electric vehicles where every kilogram and cubic centimeter counts. Reduced weight contributes to improved energy efficiency, while space savings allow for more flexible battery pack designs.
As wireless communication technologies continue to advance, the wireless bms battery system is poised to become increasingly popular across a wide range of applications, from automotive to stationary energy storage. Its combination of flexibility, reduced installation complexity, and performance characteristics make it an attractive option for forward-thinking system designers.
Figure 1-9: Wireless BMS Product
a) Sub-system b) Mother System
Note: Product images provided by Dongguan Juwei Power Technology Co., Ltd.
Wireless Communication Range
BMS Battery System Comparison
| Feature | Integrated BMS | Master-Slave BMS | Bus-Type BMS | Wireless BMS |
|---|---|---|---|---|
| Maximum Cells Monitored | 48 | 96+ (scalable) | 150+ (scalable) | Unlimited (scalable) |
| Communication | Direct wired | Point-to-point wired | CAN bus | Wireless (WiFi) |
| Installation Complexity | Low | Medium | Medium | Very low |
| Cost | Lowest | Medium | Medium-High | Highest (initial), Lower (long-term) |
| Best For | Small, low-voltage systems | Concentrated battery packs (cars, logistics vehicles) | Distributed systems with moderate distances | Systems requiring maximum flexibility and minimal wiring |
| Weight Impact | Low | Medium | Medium | Very low |
| Expandability | Limited | Good | Very good | Excellent |
Choosing the Right BMS Battery System
Selecting the appropriate bms battery management system depends on your specific application requirements, budget constraints, and future expansion plans. For small-scale applications with limited budgets, the integrated BMS offers an economical solution. When dealing with medium-sized systems where components are relatively close together, the master-slave configuration provides a good balance of performance and cost.
For larger, more distributed systems, the bus-type bms battery system offers superior flexibility and scalability through its CAN bus architecture. For applications where weight, space, and installation simplicity are critical factors, the wireless BMS represents the most advanced solution, despite its higher initial investment.
