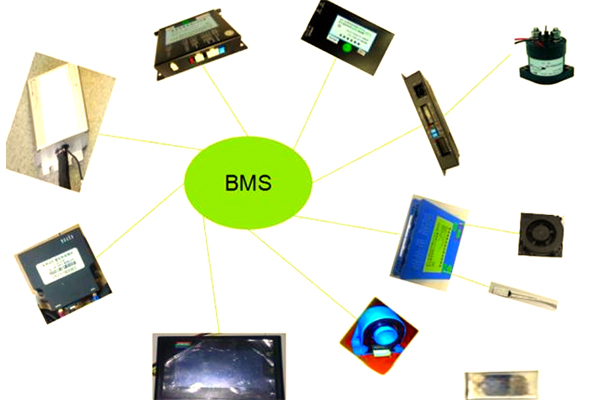

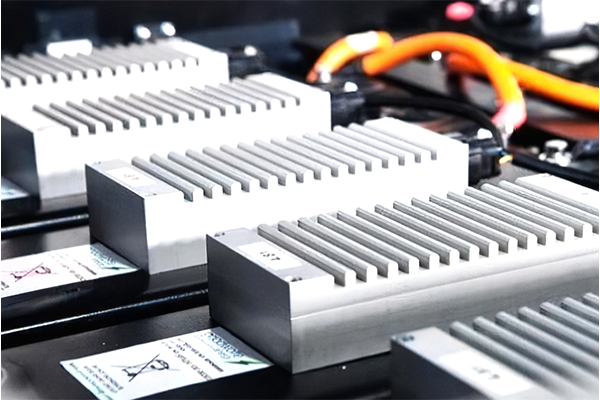

BMS Overview - Battery Management System Fundamentals
A comprehensive understanding of battery management systems is essential for developing efficient energy storage solutions.
Core Functionality
The primary role of a battery management system is to ensure safe and efficient operation while maximizing battery life.
A battery management system (BMS) is a critical component in modern battery-powered applications, serving as the intelligence behind battery packs. It monitors and regulates the performance of rechargeable batteries, ensuring safe operation, extending lifespan, and optimizing performance. The importance of a well-designed battery management system has grown exponentially with the rise of electric vehicles, renewable energy systems, and portable electronic devices.bms meaning.

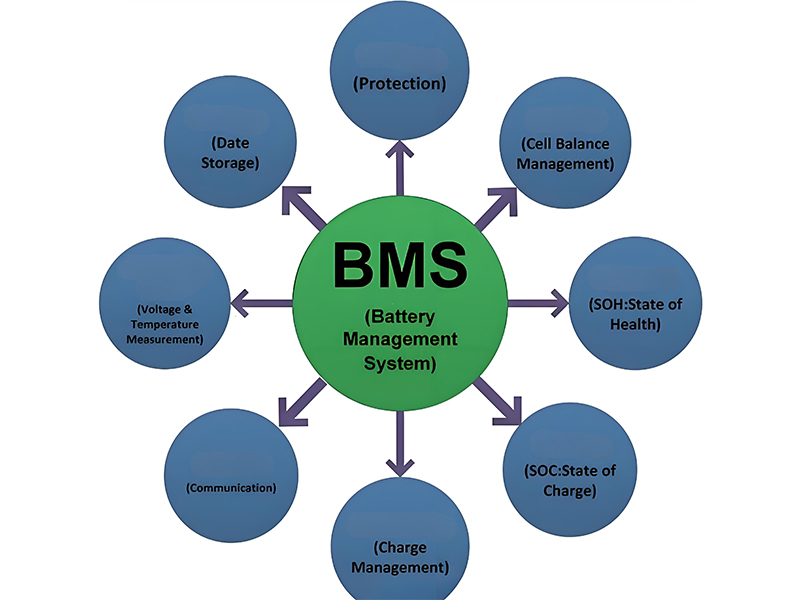

At its core, a battery management system performs several key functions: monitoring cell voltages, current, and temperature; balancing cells to ensure uniform charge levels; protecting against overcharging, over-discharging, and short circuits; calculating state of charge (SOC) and state of health (SOH); and communicating with external systems. These functions are essential for maintaining battery safety, performance, and longevity.
The evolution of battery management system technology has paralleled advancements in battery chemistry. From simple protection circuits in early lead-acid batteries to sophisticated multi-processor systems in modern lithium-ion battery packs, BMS technology continues to advance to meet the demands of increasingly complex energy storage applications.
Key Benefits of Advanced BMS
- Enhanced battery safety through comprehensive protection mechanisms
- Extended battery lifespan through optimized charging/discharging algorithms
- Improved energy efficiency and performance in all operating conditions
- Accurate state monitoring for reliable power management
- Compliance with industry standards and regulatory requirements
Battery Management System Applications

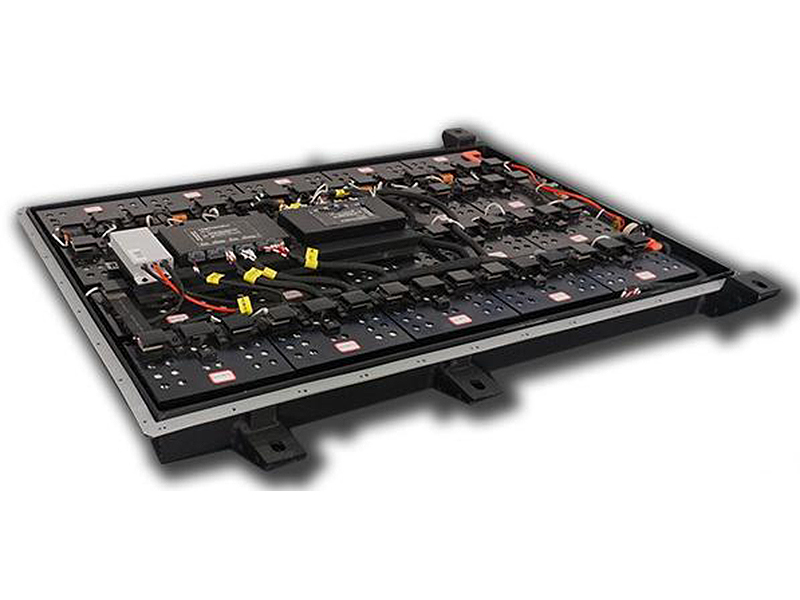

Electric Vehicles
In electric and hybrid vehicles, the battery management system ensures optimal performance, range optimization, and safety critical for automotive applications.
Energy Storage
For grid-scale and residential energy storage systems, the battery management system maximizes efficiency and ensures reliable power delivery.
Portable Electronics
Smartphones, laptops, and wearable devices rely on compact battery management system solutions for optimal performance and safety.
Medical Devices
Critical medical equipment depends on highly reliable battery management system technology for uninterrupted operation.
Aerospace & Defense
High-performance battery management system solutions for aerospace and defense applications require extreme reliability and durability.
Industrial Equipment
Forklifts, robots, and industrial machinery utilize robust battery management system technology for efficient operation and extended uptime.
Battery Management System Market Growth
The global battery management system market is projected to grow significantly due to increasing adoption of electric vehicles and renewable energy systems.

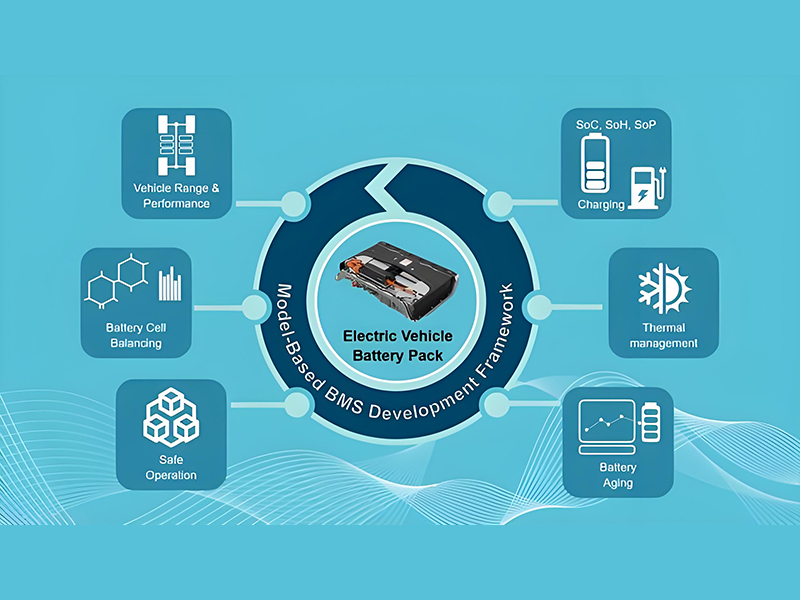

BMS development and product cycle - Development & Product Lifecycle
A structured approach to developing a battery management system ensures high-quality, reliable products that meet market requirements.
Requirements Definition
The first phase in battery management system development involves detailed requirements gathering and analysis. This includes defining performance specifications, safety requirements, environmental constraints, communication protocols, and regulatory compliance needs specific to the target application.bms system.
Stakeholder interviews, market research, and competitive analysis are conducted to ensure the battery management system will meet both technical and commercial requirements. A comprehensive requirements document serves as the foundation for all subsequent development activities.
Conceptual Design
During conceptual design, multiple battery management system architectures are evaluated based on the requirements. This includes trade-off analyses of different topologies, component selections, communication interfaces, and processing capabilities.
Preliminary simulations are performed to assess key performance metrics such as power consumption, response time, and measurement accuracy. The most promising concept is selected based on technical feasibility, cost targets, and time-to-market considerations.
Detailed Design
Detailed design transforms the selected concept into complete specifications for both hardware and software components of the battery management system. This includes schematic capture, PCB layout, component selection with tolerances, and software architecture design.
Design reviews are conducted at key milestones to ensure compliance with requirements and identify potential issues early. Detailed simulations verify thermal performance, electromagnetic compatibility (EMC), and signal integrity.
Prototyping & Testing
Functional prototypes of the battery management system are built and subjected to rigorous testing. This includes bench testing, environmental testing, and integration testing with battery packs and host systems.
Test results are analyzed, and design iterations are performed to address any issues identified. This phase continues until the prototype meets all performance and reliability requirements.
Production & Validation
Once the design is finalized, manufacturing processes are developed and validated for volume production of the battery management system. This includes developing test fixtures, production documentation, and quality control procedures.
Production validation ensures that units produced at scale meet the same performance standards as the prototype. Statistical process control is implemented to maintain quality throughout manufacturing.
Deployment & Continuous Improvement
After successful production validation, the battery management system is deployed in the target application. Field performance is monitored through telemetry and customer feedback.
Continuous improvement processes analyze field data to identify opportunities for enhancing performance, reliability, or cost-effectiveness in future revisions of the battery management system.
BMS Development Process Efficiency
Development Time
12-18
Weeks from concept to prototype
Design Iterations
3-5
Average per development cycle
First Pass Yield
92%
For production validation

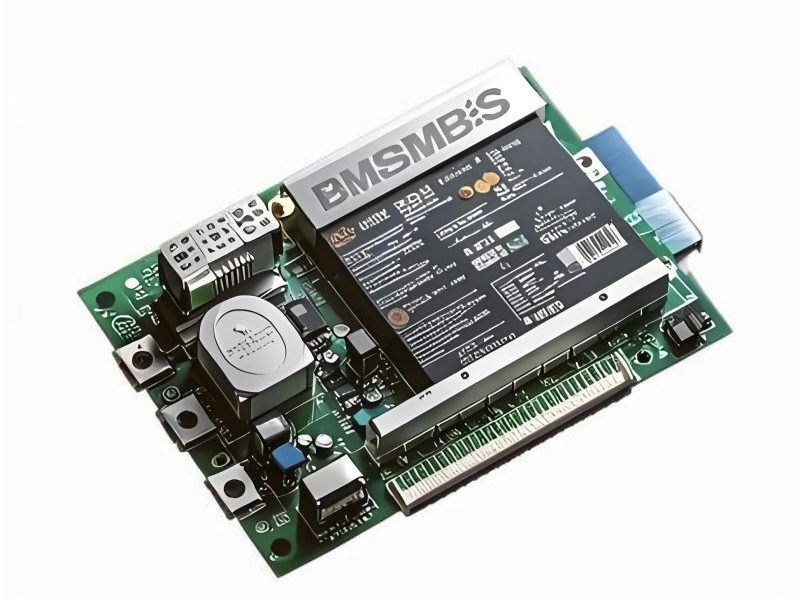

BMS hardware design - Hardware Design
The hardware components of a battery management system form the foundation for reliable and accurate battery monitoring and control.battery control module.
Main Controller Unit
The central processing unit (CPU) or microcontroller is the brain of the battery management system. It executes the control algorithms, processes sensor data, and manages communication with external systems. Modern BMS implementations typically use 32-bit microcontrollers with sufficient processing power, memory, and peripherals to handle complex algorithms while maintaining low power consumption.
Key considerations include processing speed, available memory, analog-to-digital conversion capabilities, communication interfaces, and operating temperature range to meet the specific requirements of the battery management system application.
Voltage Sensing Circuitry
Accurate voltage measurement is critical for state estimation, cell balancing, and protection functions in a battery management system. Voltage sensing circuits must provide high precision (typically ±1mV or better) while isolating cells from each other and from the main controller to prevent ground loops and ensure safety.
Implementation approaches include dedicated battery monitor ICs with integrated multiplexers, discrete op-amp based designs, and isolated voltage sensors. The chosen architecture must minimize power consumption while providing sufficient measurement bandwidth for dynamic battery conditions.
Current Measurement
Current sensing is essential for calculating state of charge, energy transfer, and detecting overcurrent conditions in a battery management system. Common current sensing technologies include shunt resistors, Hall effect sensors, and current transformers, each with distinct advantages in terms of accuracy, isolation, cost, and bandwidth.
Shunt resistors offer high accuracy and low cost for low to medium current applications, while Hall effect sensors provide galvanic isolation desirable for high-voltage battery management system implementations.
Temperature Sensing
Temperature monitoring is vital for safe operation and performance optimization of battery packs. A battery management system typically incorporates multiple temperature sensors strategically placed throughout the battery pack to detect hot spots and ensure uniform thermal conditions.
Common temperature sensing elements include thermistors, thermocouples, and digital temperature sensors (such as I2C-based devices). The battery management system uses temperature data to adjust charging rates, trigger cooling systems, and implement thermal protection functions.

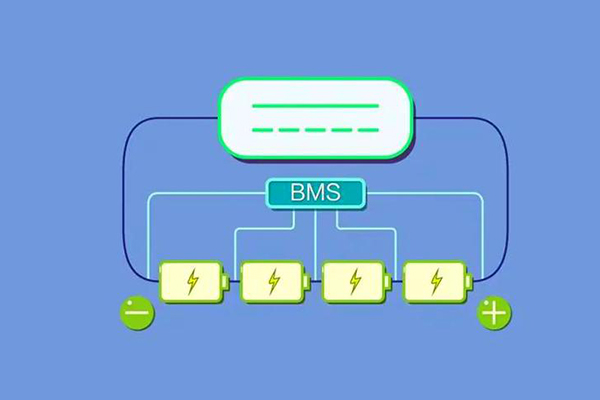

Cell Balancing Circuitry
Cell balancing ensures that all cells in a battery pack maintain similar state of charge, maximizing capacity utilization and extending battery life. Battery management system implementations use either passive balancing (dissipating excess energy through resistors) or active balancing (transferring energy between cells) approaches.
Passive balancing is simpler and lower cost but less efficient, while active balancing offers higher efficiency and faster balancing but with increased complexity and cost. The choice depends on the specific application requirements of the battery management system.
Protection Circuits & Power Management
Protection circuits in a battery management system include fuses, circuit breakers, and solid-state switches (MOSFETs or IGBTs) to disconnect the battery pack under fault conditions such as overvoltage, undervoltage, overcurrent, or short circuits.
Power management subsystems provide stable voltage rails for the battery management system electronics, often operating from the battery pack itself while maintaining efficiency across a wide input voltage range.

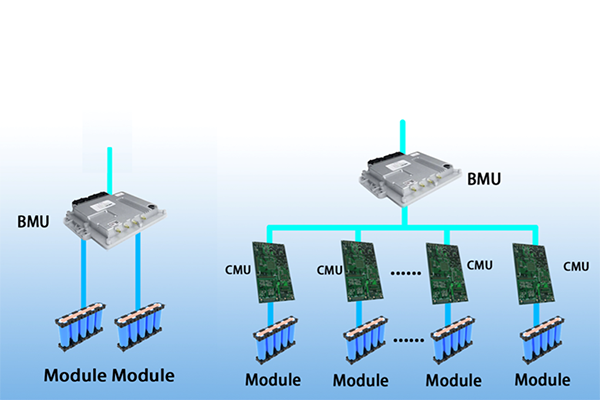

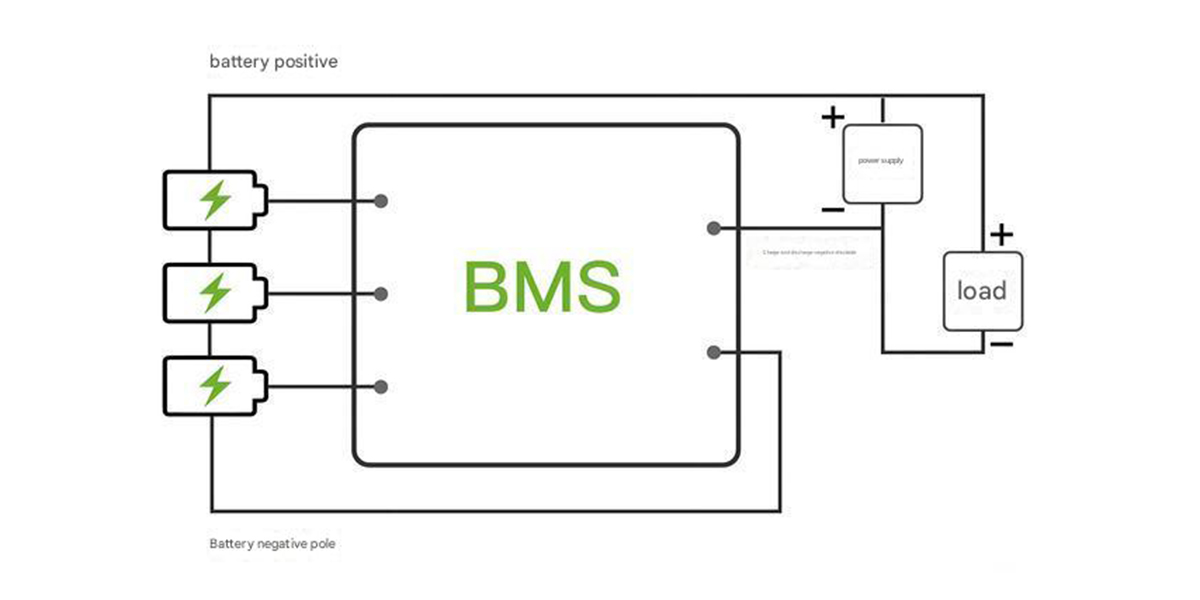

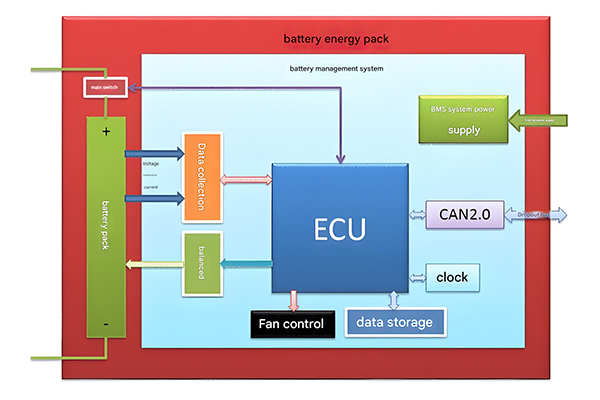

Battery Management System Hardware Architecture
A typical battery management system hardware architecture showing the main components and their interconnections.

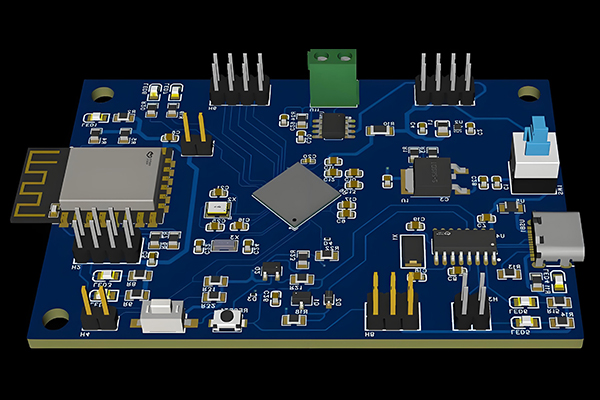

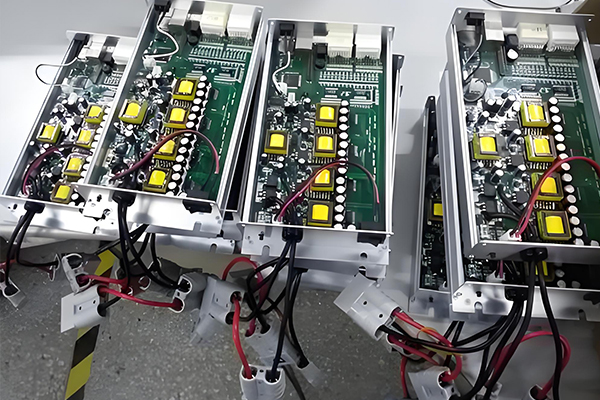

PCB Design Considerations for BMS
Layout Optimization
Proper PCB layout is critical for battery management system performance, with special attention to minimizing noise in sensitive measurement circuits, ensuring proper grounding, and managing thermal dissipation.
EMC/EMI Compliance
Battery management system designs must meet electromagnetic compatibility requirements through proper shielding, filtering, and layout techniques to prevent interference with other systems.
Thermal Management
PCB design must address thermal considerations, especially for power components and balancing resistors, to ensure reliable operation of the battery management system across the operating temperature range.
Manufacturing Considerations
PCB designs for volume production of battery management system units must consider manufacturability, testability, and cost factors while maintaining performance and reliability.
BMS software design - Software Design
The software components of a battery management system provide the intelligence that enables optimal battery performance, safety, and longevity.
Software Architecture
Battery management system software typically follows a layered architecture with clear separation between hardware abstraction, control algorithms, and application logic. This modular approach facilitates maintainability, testing, and future enhancements.
Real-time operating systems (RTOS) are commonly used to manage concurrent tasks with different priority levels, ensuring timely response to critical events such as overcurrent conditions or cell voltage limits.What is bms.
Core Software Components
- Hardware abstraction layer (HAL) for sensor and actuator interfaces
- Data acquisition and processing modules
- State estimation algorithms (SOC, SOH, SOF)
- Cell balancing control logic
- Protection and safety functions
- Communication protocol handlers
- Diagnostics and fault management
Key BMS Algorithms
State of Charge (SOC) Estimation
SOC estimation algorithms calculate the remaining capacity of the battery as a percentage of nominal capacity, critical for providing accurate range information and preventing over/under charge.
Common approaches in battery management system software include coulomb counting, open circuit voltage methods, and model-based algorithms like Kalman filters.
State of Health (SOH) Monitoring
SOH algorithms assess the overall condition of the battery, tracking capacity degradation and internal resistance changes over time to predict remaining useful life.
Battery management system implementations use various metrics including capacity fade, impedance growth, and cycle count to evaluate battery health.
State of Function (SOF) Assessment
SOF algorithms determine the maximum power and current that can be safely drawn from or delivered to the battery under current operating conditions.
This battery management system function is particularly important for applications like electric vehicles where dynamic power demands vary significantly.
Cell Balancing Algorithms
These algorithms determine when and how to balance cells based on voltage differences, charge levels, and operational conditions to maximize pack capacity and longevity.
Advanced battery management system implementations use adaptive balancing strategies that optimize for both efficiency and balancing speed.
Charging Control Algorithms
These algorithms manage the charging process, adjusting current and voltage profiles based on battery chemistry, temperature, state of charge, and health to maximize charging efficiency and battery life.
Battery management system charging algorithms often implement multi-stage charging profiles optimized for specific battery chemistries.
Protection Logic
Protection algorithms continuously monitor battery parameters against safety thresholds, initiating protective actions such as current limiting or disconnection when limits are exceeded.
Redundancy and fail-safe mechanisms in battery management system software ensure reliable protection under all operating conditions.
BMS Communication Protocols
Internal Communication
Communication between battery management system components often uses:
- I2C - For low-speed communication between microcontrollers and sensors
- SPI - For higher-speed communication between microcontrollers and peripherals
- CAN 2.0B - For communication in distributed BMS architectures
- LVDS - For high-speed data transmission in complex systems
External Communication
Communication between the battery management system and external systems typically uses:
- CAN bus - Common in automotive and industrial applications
- Modbus - Used in industrial and energy storage systems
- Ethernet - For high-bandwidth data logging and monitoring
- Wireless (BLE, Wi-Fi, cellular) - For remote monitoring applications

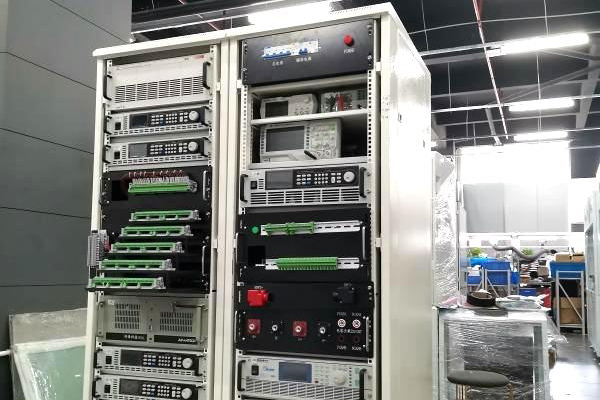

BMS Validation - Validation & Testing
Rigorous validation and testing ensure that a battery management system meets all performance, safety, and reliability requirements.
Battery management system validation is a comprehensive process that verifies the design meets all specified requirements under various operating conditions. This multi-stage process ensures that the BMS functions correctly, safely, and reliably throughout the product lifecycle.Battery systems.
Validation begins with component-level testing and progresses through subsystem and system-level testing, culminating in field trials under real-world conditions. Each stage of testing provides valuable data that may result in design refinements to optimize battery management system performance.
Validation Objectives
- Verify all functional requirements are met
- Ensure compliance with safety standards and regulations
- Validate performance across all operating conditions
- Verify reliability and durability over expected lifetime
- Validate communication protocols and interfaces
BMS Testing Types
Component Testing
Individual battery management system components such as microcontrollers, sensors, and power management ICs are tested to verify they meet specifications and perform correctly under all operating conditions.

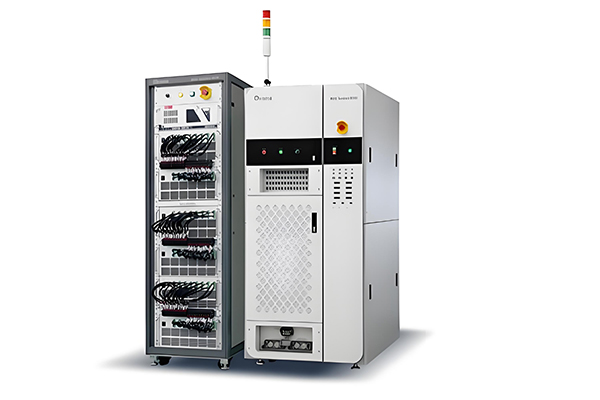

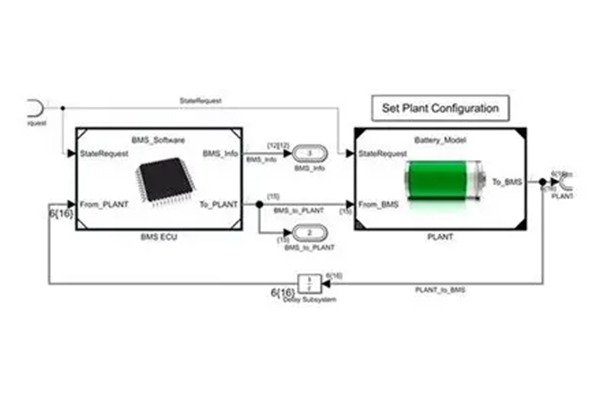

Hardware-in-the-Loop (HIL) Testing
HIL testing validates the battery management system hardware with simulated battery and load conditions, allowing comprehensive testing without physical batteries across a wide range of scenarios.
Software Testing
Battery management system software undergoes unit testing, integration testing, and system testing to verify algorithm correctness, state estimation accuracy, and proper fault handling.
Environmental Testing
Battery management system performance is validated under extreme temperatures, humidity, vibration, and shock conditions to ensure reliability in target applications.
Safety & Compliance Testing
Testing ensures the battery management system meets relevant safety standards (UL, IEC, ISO) and regulatory requirements for protection functions, electromagnetic compatibility, and environmental impact.
Field Testing
Final validation of the battery management system in real-world operating conditions provides confidence in performance, reliability, and user satisfaction before full-scale production.
Relevant Standards & Certifications
ISO 26262
Road vehicle functional safety
IEC 62133
Safety for portable batteries
UL 1642
Lithium-ion battery safety
UL 94
Flammability testing
SAE J1772
Electric vehicle charging
IEC 61851
Electric vehicle conductive charging
ISO 11451
EMC for road vehicles
IEC 62282
Fuel cell technologies
Our battery management system designs comply with these and other relevant standards to ensure safety, performance, and interoperability across applications.
BMS Validation Process Flow
Test Planning
Define test cases, pass/fail criteria, and test environments
Component Testing
Validate individual BMS components and subsystems
System Integration
Test complete BMS with battery pack and host system
Qualification
Final validation and certification for production
